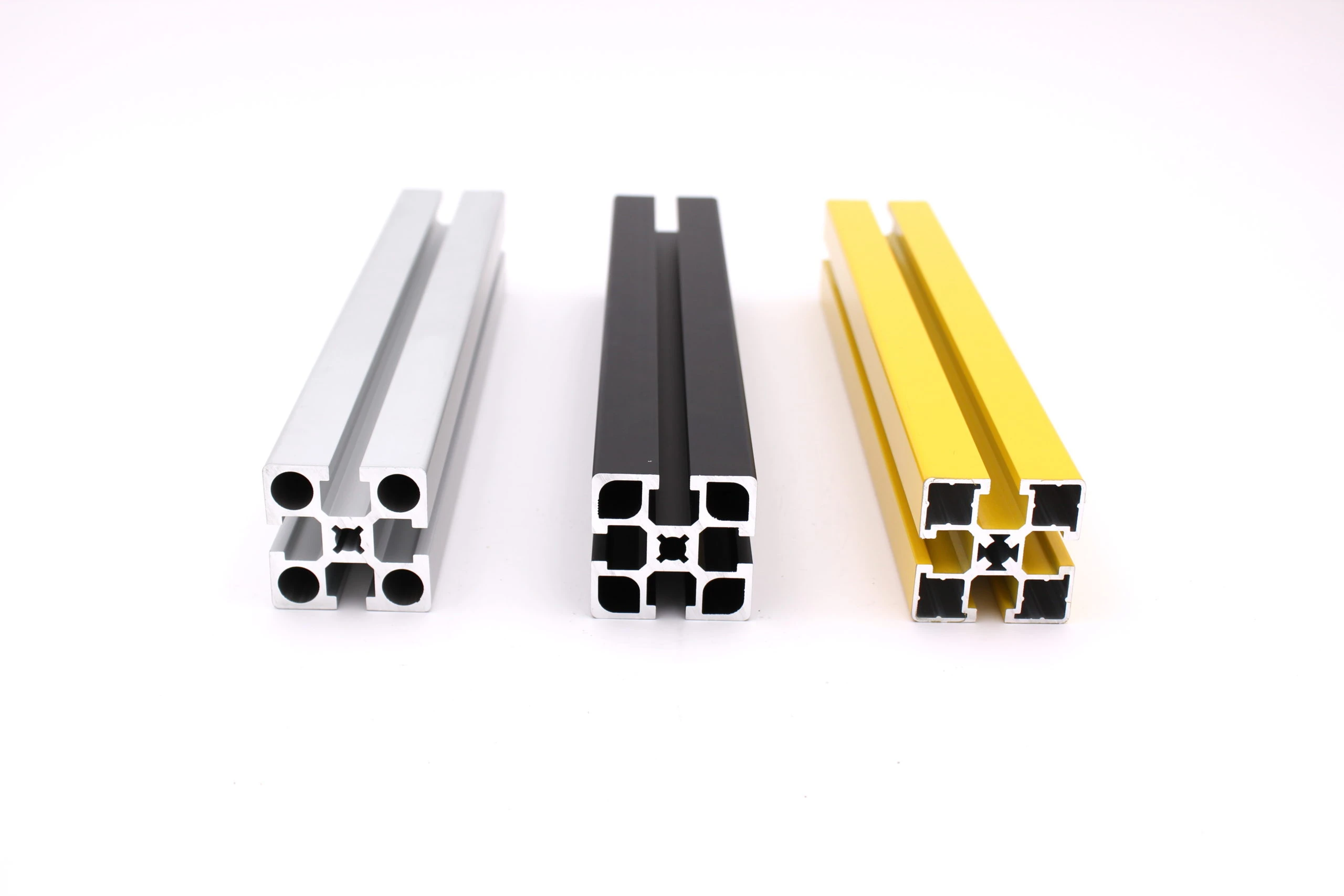

Modern manufacturing demands structures that are strong, adaptable, and easy to modify as production needs change. Engineers often turn to modular framing systems because they allow quick assembly without sacrificing rigidity. MiniTec Aluminum Framing, built on extruded aluminum T slot profiles, supports a wide range of machine frame designs that fit both simple and complex industrial environments.
Enclosed Machine Bases for CNC and Router Systems
Enclosed machine bases provide stable foundations for CNC machines and router systems. These bases often use T slot aluminum extrusion to create rigid rectangular structures that resist vibration during cutting operations. Strong joints and precise alignment help maintain dimensional accuracy across long production runs.
Panels can be added directly into the T slot extrusion channels to create full enclosures. Clear polycarbonate or metal sheets attach easily without welding. This approach allows maintenance access while protecting operators from debris and noise. MiniTec extruded aluminum framing supports clean, modular construction that simplifies future upgrades or reconfiguration.
Compact Bench Frames for Small Assembly Stations
Small assembly areas require sturdy but space-efficient frames. Compact bench frames built with MiniTec Aluminum Framing provide solid surfaces for electronics, mechanical components, or light fabrication tasks. Their lightweight nature makes relocation within a facility easier compared to welded steel structures.
Adjustable brackets and fasteners connect directly into the extruded aluminum T slot system. This feature allows shelves, lighting, or tool mounts to be repositioned quickly. T slot extrusion frames make it possible to expand workstations without dismantling the entire setup.
Adjustable Height Frames for Ergonomic Work Cells
Ergonomic design improves productivity and reduces fatigue. Adjustable height frames constructed from T slot aluminum extrusion allow work surfaces to shift according to operator needs. This flexibility supports standing and seated tasks within the same work cell.
Height adjustment mechanisms integrate into the modular frame without compromising strength. MiniTec extruded aluminum framing accommodates linear actuators or manual lift systems. The ability to modify height supports long-term comfort and safer workplace practices.
Conveyor Support Frames for Material Handling Lines
Material handling systems rely on stable support structures. Conveyor frames built with MiniTec Aluminum Framing hold belts and rollers in precise alignment. The rigidity of extruded aluminum T slot profiles prevents sagging under load. Expansion is straightforward when production increases. Additional sections bolt onto existing T slot extrusion frameworks without extensive fabrication. This modular approach keeps material flow consistent while allowing facilities to scale operations efficiently.
Guarded Machine Frames with Integrated Safety Panels
Safety remains a priority around automated equipment. Guarded machine frames use T slot aluminum extrusion to secure protective panels and interlocked doors. Clear viewing panels maintain visibility while restricting access to moving components.
Safety devices such as light curtains and emergency stops mount directly onto the framing. The channels in MiniTec Aluminum Framing simplify installation of brackets and wiring guides. This adaptability supports compliance with industrial safety standards.
Multi-Level Equipment Frames for Stacked Processes
Certain operations require equipment to be arranged vertically. Multi-level frames create stacked platforms for different processing stages. T slot extrusion systems provide the strength necessary to support upper tiers safely.
Access ladders and guardrails integrate seamlessly into the structure. Modular joints allow future adjustments if process flow changes. MiniTec extruded aluminum framing supports layered configurations without excessive weight.
Rigid Gantry Frames for Automated Pick and Place
Automation systems often use gantry frames to guide robotic arms or linear motion components. These frames demand precise alignment and minimal deflection. Extruded aluminum T slot profiles form strong beams capable of supporting dynamic loads.
Proper bracing enhances stability during rapid movement. T slot aluminum extrusion makes it easier to mount linear guides and drive systems directly to the frame. This design supports consistent positioning accuracy in automated pick and place applications.
Modular Press Frames for Light Industrial Forming
Light industrial forming processes benefit from frames that combine strength with adaptability. Modular press frames constructed from MiniTec Aluminum Framing support controlled force without permanent welds. Reinforced joints distribute pressure evenly across the structure.
Quick modifications allow tooling changes without rebuilding the entire frame. T slot extrusion channels accept additional supports or fixtures as needed. This modular flexibility reduces downtime during equipment adjustments.
Custom Enclosure Frames for Vision and Inspection Systems
Inspection systems require enclosed spaces to control lighting and environmental conditions. Custom enclosure frames built with T slot aluminum extrusion create stable housings for cameras and sensors. Panels attach securely while maintaining easy access for calibration.
Lighting mounts and cable management integrate directly into the extruded aluminum T slot structure. MiniTec extruded aluminum framing supports precise positioning of inspection components. The modular design ensures future technology upgrades can be installed without reconstructing the enclosure.
Comprehensive framing solutions tailored to machine builders and integrators are available through Minitec Solutions. Their expertise in MiniTec Aluminum Framing and T slot aluminum extrusion systems supports everything from small work cells to complex automation structures. By providing engineered components and design guidance, Minitec Solutions helps manufacturers create durable, adaptable machine frames built for long-term performance.
